KITCHEN ISLAND TURNING SPECIFICATIONS

The following specifications have been listed to make it easier to incorporate all of the Kitchen Island Turnings into your design.

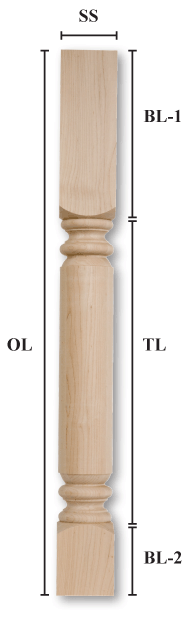

Description	SS-Square Size	BL-1-Block Length 1	BL-2-Block Length 2	TL-Turned Length	OL-Overall Length
Athens	3-1/2”	11-3/8”	4-1/2”	20-1/8”	36”
Athens	3-3/4”	10-5/8”	4-1/2”	20-1/8”	35-1/4”
Athens 45”	3-3/4”	14-1/2”	4-1/2”	26”	45”
Athens Fluted	3-1/2”	11-3/8”	4-1/2”	20-1/8”	36”
Athens Fluted	3-3/4”	10-5/8”	4-1/2”	20-1/8”	35-1/4”
Athens Fluted 45”	3-3/4”	14-1/2”	4-1/2”	26”	45”
Athens Rope	3-1/2”	11-3/8”	4-1/2”	20-1/8”	36”
Athens Rope	3-3/4”	10-5/8”	4-1/2”	20-1/8”	35-1/4”
Athens Rope 45”	3-3/4”	14-1/2”	4-1/2”	26”	45”
Athens Reeded	3-1/2”	11-3/8”	4-1/2”	20-1/8”	36”
Athens Reeded	3-3/4”	10-5/8”	4-1/2”	20-1/8”	35-1/4”
Athens Reeded 45”	3-3/4”	14-1/2”	4-1/2”	26”	45”
Cologne Fluted	3-3/4”	12”	N/A	23-1/4”	35-1/4”
Cologne Rope	3-3/4”	12”	N/A	23-1/4”	35-1/4”
Dublin	3-3/4”	14-7/8”	N/A	20-3/8”	35-1/4”
Gustavia	3-1/2”	7-5/8”	7-1/2”	20-7/8”	36”
Hartford	3-1/2”	10-1/8”	N/A	25-7/8”	36”
Naples	3-3/4”	5-15/16”	5-15/16”	23-3/8”	35-1/4”
Paris	3-3/4”	13-1/8”	N/A	22-1/8”	35-1/4”
Paris Reeded	3-3/4”	13-1/8”	N/A	22-1/8”	35-1/4”
Rome	3-1/2”	6-5/8”	5”	24-3/8”	36”
Rome 5” x 5”	5”	6-5/8”	5”	24-3/8”	36”
Rome 8” x 8”	8”	6-5/8”	5”	24-3/8”	36”
Savannah	3-1/2”	8-1/2”	8-1/4”	19-1/4”	36”
Savannah 5” x 5”	5”	8-1/2”	8-1/4”	19-1/4”	36”
Savannah 8” x 8”	8”	8-1/2”	8-1/4”	19-1/4”	36”
Toiny	2-7/8”	7-5/8”	7-1/2”	20-7/8”	36”
Venice	3-1/2”	7”	6-1/4”	22-3/4”	36”
Venice 5” x 5”	5”	7”	6-1/4”	22-3/4”	36”
Venice 8” x 8”	8”	7”	6-1/4”	22-3/4”	36”
